The TP-Link TL-WPA4226KIT, a solid choice for people who need to take your internet and WiFi to the most remote areas of the house. This is a pair of jacks AV500, both with 2 ethernet jacks, and one with WiFi N 2 × 2 to 300mbps.
Technical Characteristics
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b / g / n, IEEE1901 |
| Interfaces | 2 Ethernet 10 / 100Mbps ports WPA4220 -TL- 2 Ethernet 10 / 100Mbps ports – TL-PA4020P |
| Plug Type | EU, UK |
| Buttons | Pair, Reset, Wi-Fi / Wi-Fi Clone |
| LED | PWR, PLC, ETH, Wi-Fi / Wi-Fi Clone |
| Dimensions (WxDxH) | 3.7 x 2.1 x 1.6 in. (94 x 54 x 40 mm) 3.7 x 2.3 x 1.7 in. (95 x 58 x 42 mm) |
| Power consumption | Maximum: 8.218W Standard Mode: 7.686W Standby: 4.63W |
| Scope | 300 meters through the electric circuit |
| SOFTWARE FEATURES | |
|---|---|
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES Wireless Security: WEP encryption, WPA / WPA2, WPA-PSK / WPA2-PSK |
| OTHER | |
|---|---|
| Certifications | CE, FCC, RoHS |
| Package Contents | 1 Powerline Adapter TL-WPA4220 & 1 Powerline Adapter TL-PA4020P Ethernet Cable 2 m (RJ45) Resource CD Quick Installation Guide |
| System Requirements | Windows 8/7 / Vista / XP, Mac OS or Linux |
| Environmental factors | Operating temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage humidity: 5 % ~ 90% non-condensing |
WiFi Extender Kit AV500 Powerline TP-Link TL-WPA4226KIT
Nothing surprises in the box, we see a photo of the apparatus and a first look at the specifications.
In the back we see the typical compared to other models, an example of use, and some more information.
On the side we see the technical details, which was already mentioned previously. According to the manufacturer, we have a range of up to 300m in the same phase. Of course it supports all types of security for our wireless network from WEP to WPA2 (we highly recommend using the latter whenever possible here on Connected Digital World). The ports are 10/100 on the TL-WPA4226KIT.

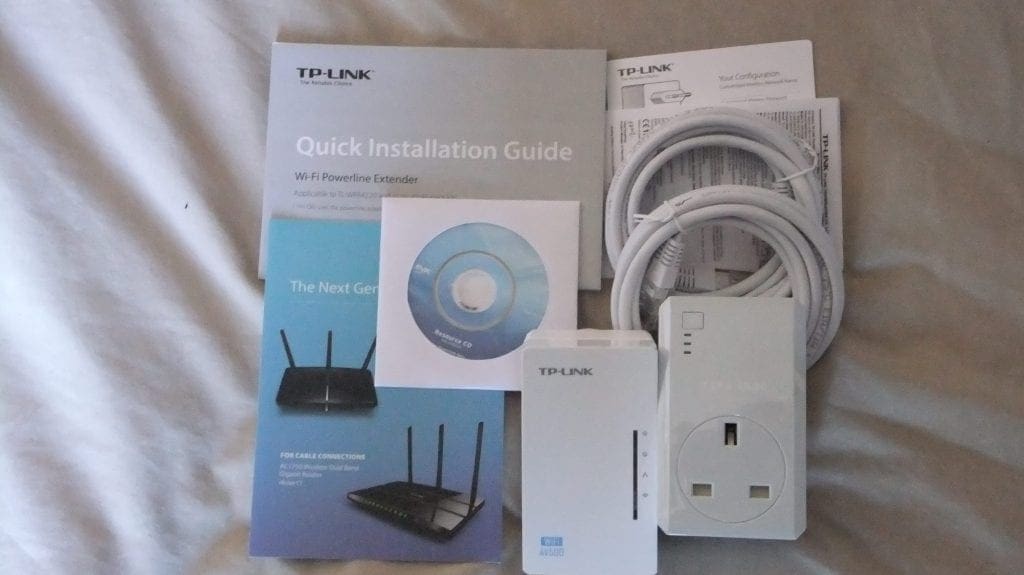

This is a really complete kit, in addition to the mandatory two Ethernet cables quick installation guide and a CD with documentation attached. The device does not require any drivers, and the connection is completely transparent to the user. CAT5 cables, so that we can use in Gigabit Ethernet devices.
The installation is extremely simple, and standard are matched, so to start using them simply plug into an outlet each of our private home, bring an ethernet cable to the router first, and second longer you can use to get two other network outlets or using your wireless connection.
To set the WiFi to our liking, we can do it right the URL indicating TP-Link in the Quick Start Guide or directly using the WPS PLC button and our router to copy the entire configuration in which it will make repeater.
Test via WiFi
Tested at the same part of the building after the TL-WPA4226KIT was installed via a Ethernet cable.
Conclusion
The TP-Link TL-WPA4226KIT is really complete and flexible to meet the needs of any user with a big house or wireless reception problems.
The TP Link TL WPA4226KIT is priced at £79.99 RRP but if you look at Amazon you can find them just under £60.
This TP-Link has Standard Specifications, and now these days it is suitable for our telecommunication…
