Review: TP-Link Archer T4U AC1200 Wireless Dual Band USB adapter

-

- Advertisement -

First off this is the review of the TP-Link Archer T4U Wireless Dual Band USB 3.0 Adapter that uses 802.11ac for even faster wireless internet and for a longer distance.

DSCF6041

This box many be small but does it pack a bigger punch lets find out.

DSCF6042

Contents of the box is :-

Wireless Adapter Archer T4U
Resource CD
Quick Installation Guide
USB Extension Cable

HARDWARE FEATURES
Interface USB 3.0
Button WPS button
Dimensions (W X D X H) 3.6×1.2×0.6 in. (92.2×29×14.6mm)
Antenna Type Omni Directional
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 5GHz
2.4GHz
Signal Rate 5GHz
11ac: Up to 867Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP <20dBm (EIRP)
Reception Sensitivity 5GHz:
11a 6Mbps: -88dBm
11a 54Mbps: -71dBm
11ac HT20: -65dBm
11ac HT40: -60dBm
11ac HT80: -56dBm
2.4GHz:
11b 11Mbps: -90dBm
11g 54Mbps: -73dBm
11n HT20: -71dBm
11n HT40: -68dBm
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM,
256-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Adapter Archer T4U
Resource CD
Quick Installation Guide
USB Extension Cable
System Requirements Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)

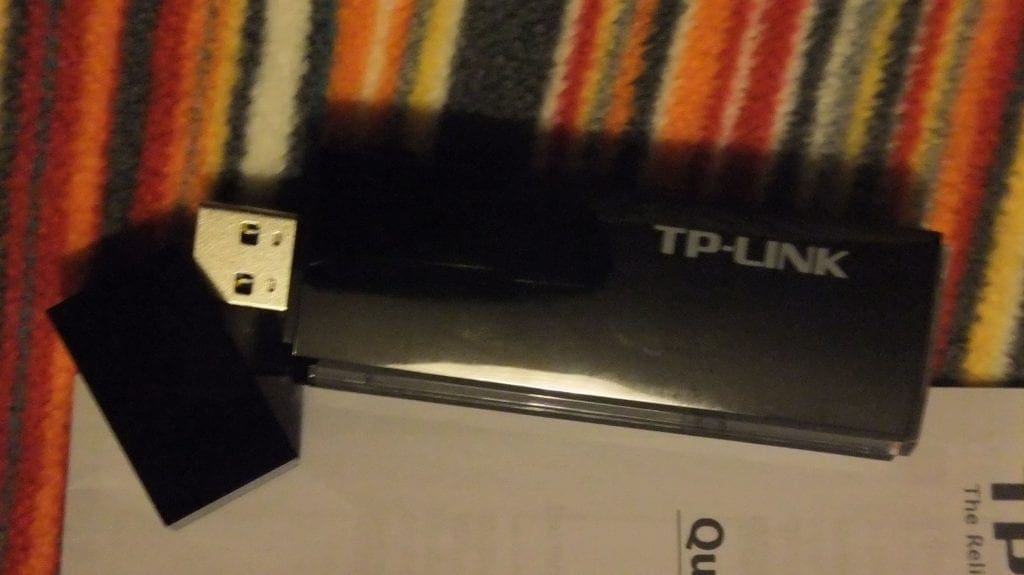

After installing the drivers from the CD that’s included for the drivers and the utility software (or install from the website).

Just plug in the USB adapter into you computer and connect to the wifi signal you are looking and for, and connect.

DSCF6043

Here are the speed test, that I tested on a 5GHz router from TP-Link the Archer C7 AC1750 (click for the review of the unit).

After the 5 metre test I was testing the device, with walls etc in the way.

Speed Performance

Using the 5 GHz

1 metre away from router:

Ping – 12ms

D/L Speed – 73.87Mbps

U/L Speed – 6.14 Mbps



5 metre away from router:

Ping – 14ms

D/L Speed – 38.39Mbps

U/L Speed –  6.08Mbps



15 metre away from router:

Ping – 13ms

D/L Speed – 34.09Mbps

U/L Speed –  6.04Mbps



25 metre away from router:

Ping – 11ms

D/L Speed –  33.17Mbps

U/L Speed –  6.08Mbps

If you are looking for a device to a extra distance for you laptop or computer then you can’t go wrong with the TP-Link Archer T4U Wireless Dual Band USB 3.0 Adapter priced around £40.


Chris Hare
A True Tech Geek at Heart, I Started my life of being a Tech Geek at the age of 5 with the BBC Micro. Went on through most of Nintendo stuff and now a Xbox and PlayStation fan. I also leaked the information about the leaked Hotmail passwords story from October 2009 that went World Wide. I Started writing tech articles at the beginning of 2011, most of my articles are about Android phones and Xbox One and PlayStation 4 and other gaming news. When Chris has free time its with the family.

2 COMMENTS

  1. 6.14 Mbps is very low for AC really (less than 1 MB per second). In fact I am using same router (Archer C7) and two wifi adapters: one for client N300 at 5Ghz and one N150 at 2,4 Ghz on some file server.

    Additional setup is that both wifi adapters are pretty much next to each other (up to 20 cm) and about 6 meters away from the router. Downloading file from the server is done at stable 11 MB per second which gives over 90 Mbps – far more than whatever is presented in this test.

    However those pings are also disturbing. 6m away from C7 but using another adapter (for that purpose I just used N300 with some old Broadcom chip) I got average ping around 4 ms (2 times response was in fact 15 ms, trial repeated 30 times total).

    Based on given numbers I am pretty much certain there was some interference that caused this drop of performance. Otherwise this sounds just like a solid N adapter.
